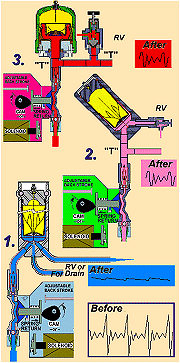

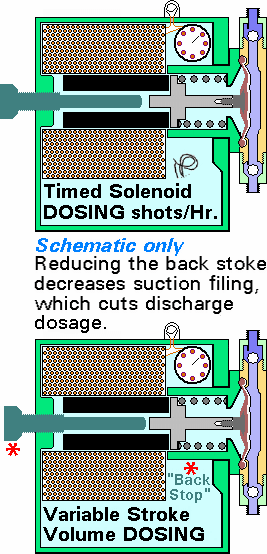

The COST €€ of LP DOSING PUMPS with Various PULSEGUARD Dampers Save parts, save space, save time, save costs. Gain smooth flow, gain pressure pulse interception, and gain in place flushability with through flow dampers. Solenoid dosing pumps and lost motion cam drive dosing pumps need a damper to catch the sudden impulses that these pumps make. |
 |
| The safety of all metalic enclosure plus compatibilty of plastic connection block with a PipeHugger LP Lined Peg/Lnd/35i/D115/225p The PipeHugger LP Lined, is economical when special metal liquid contact parts Ex: Tantalum, Zirconium Hast. C276 are needed. |
Damper €447 2 "T" pieces cutting pipe making 6 connections say €156 Total €603 |
 |
| With the idea that plastic is cheap, a twin connection PipeGuard PLAS part Nbr. Pig-Plas/60i/B63x214/150p/PVC was selected Extra cost of single connection special was saved plus one "T" saved by using the second connection for the ssytem relief or drain. |
Damper €378 1 "T" piece cut and fit 3 connections say €67 Total €445 |
|
| PigSS-LP/Tri/30i/600p/316 No "T" pieces required, smaller more compact, half the price, 3 times smoother performance. Six times the value of a single connection accumulator. And it doesn't suffer from low temperature fracture. |
shown vertically for graphic space only Damper €199 Fit-up say €23 Total €222 |
See also: Dosing Pumps, Solenoid Digital, with Pulsation Dampers |
